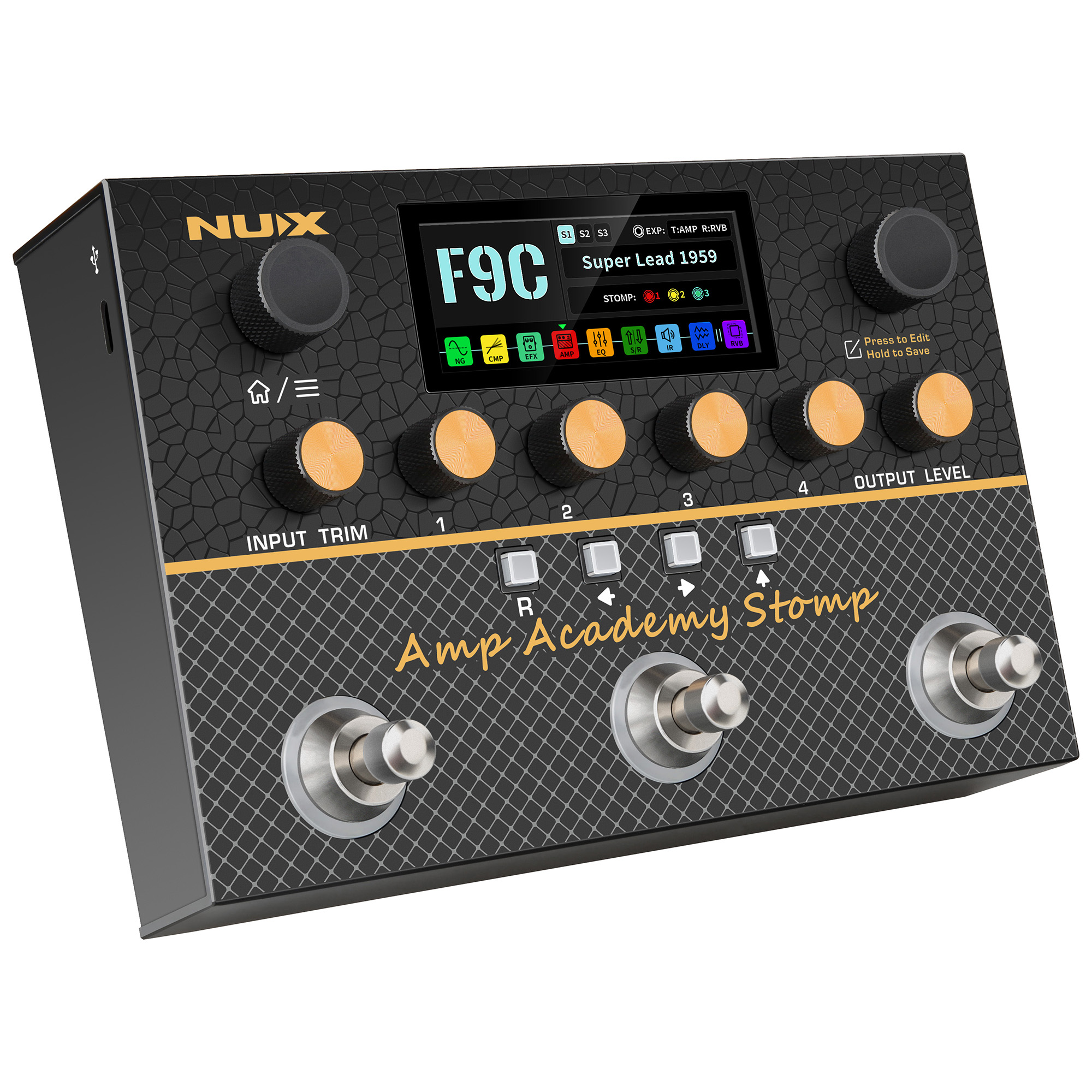

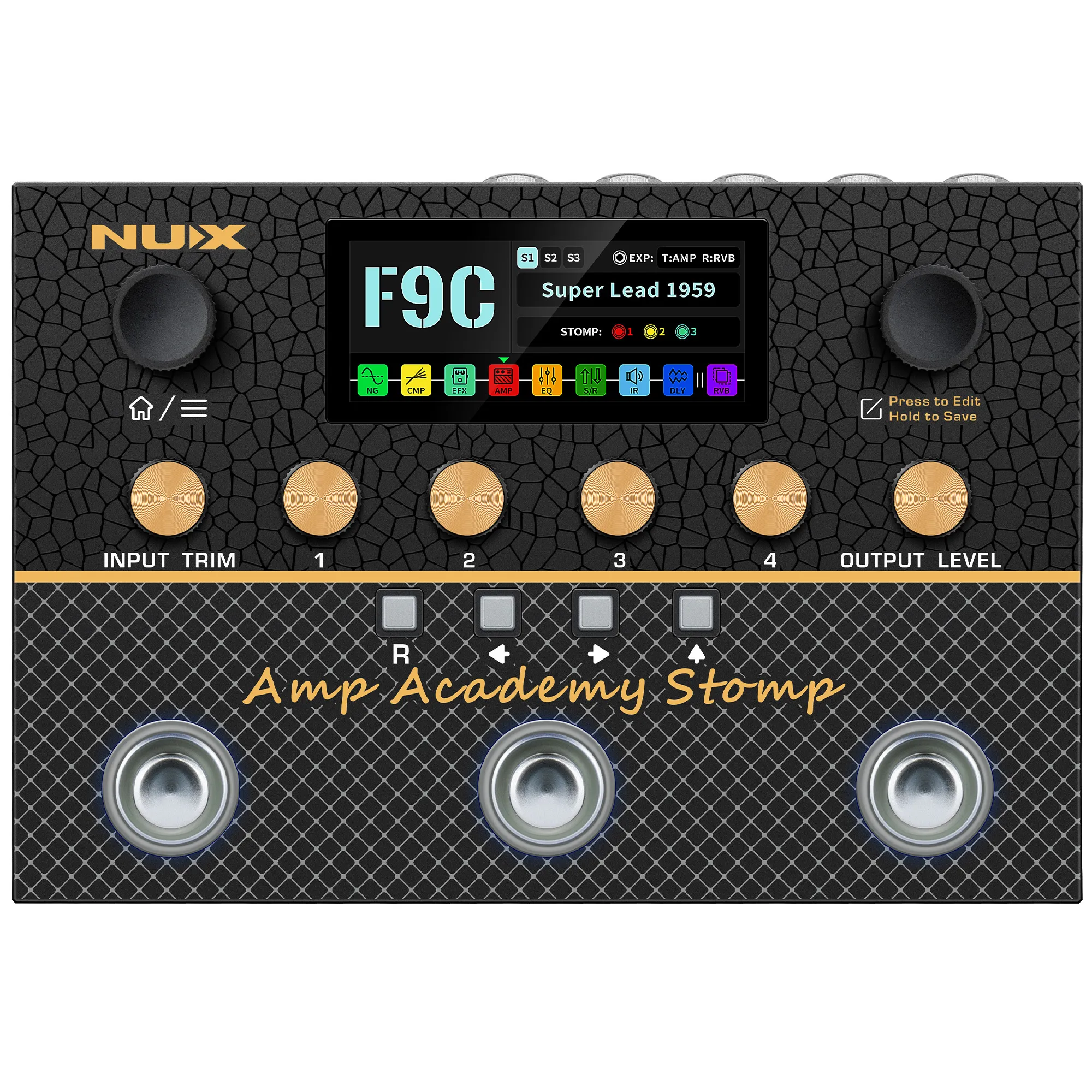

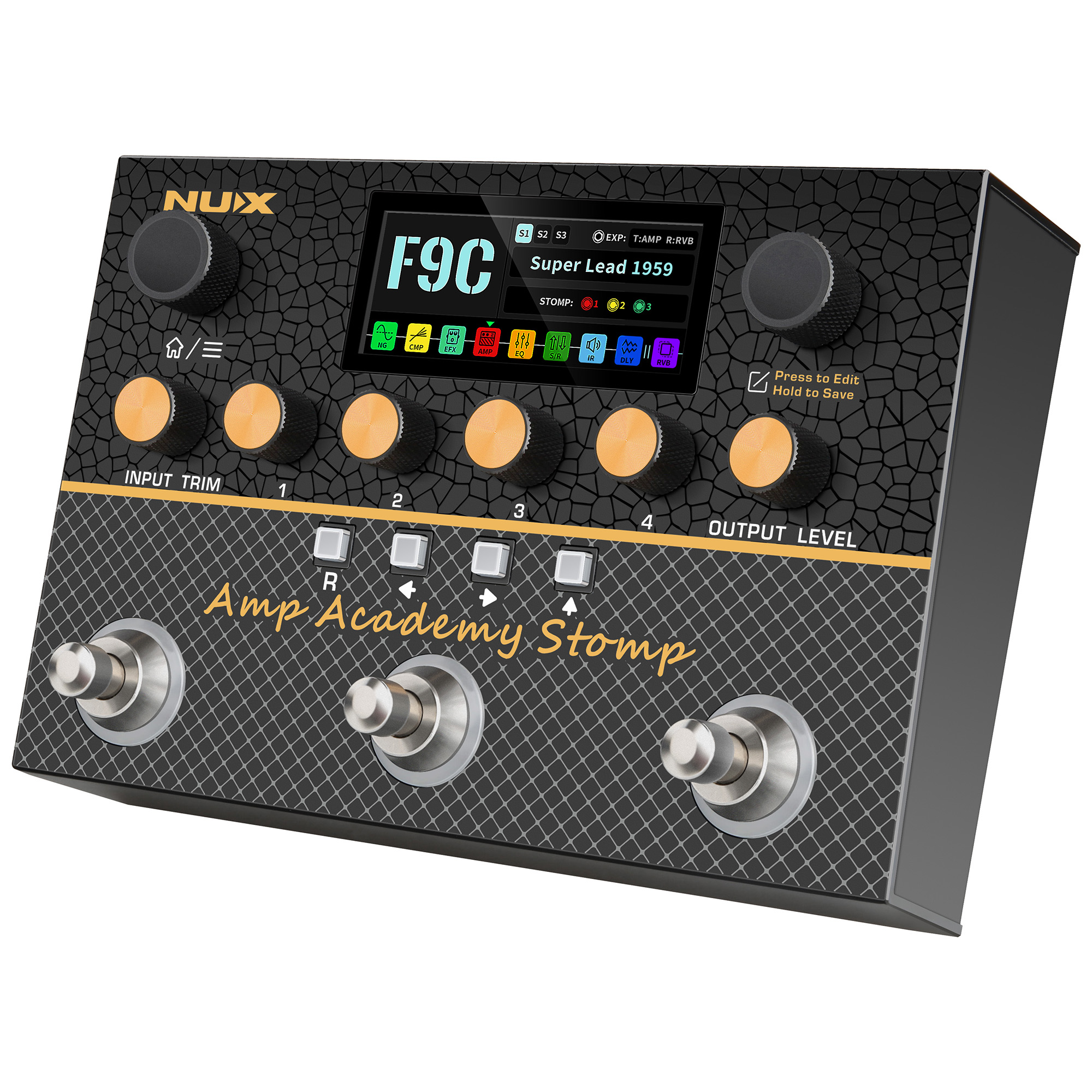

NUX NMA-3AAP Amp Academy Stomp Multi-Effects Pedal – Deep Dive Overview
The NUX NMA-3AAP Amp Academy Stomp is a powerful next-generation amp modeler and multi-effects processor designed for guitarists who demand studio-grade tone in a compact, stage-ready unit. Available at Sadek Music, it combines advanced digital modeling with flexible routing, deep editing capabilities, and modern connectivity for today’s performing and recording musicians. At its core, the pedal utilizes the TSAC-4K white-box modeling algorithm, which accurately recreates both preamp and power amp behavior. This results in highly responsive dynamics that closely mirror real tube amplifier interaction, including natural gain response, touch sensitivity, and harmonic richness. A stereo Cyber IR engine enhances cabinet simulation by allowing users to fine-tune microphone type, position, and distance. This level of control enables players to shape everything from tight studio tones to expansive live sounds with precision and realism.
The NMA-3AAP features nine fully customizable effect blocks: Noise Gate (NG), Compressor (CMP), Effects (EFX), Amp, EQ, Send/Return (S/R), IR, Delay (DLY), and Reverb (RVB). These blocks can be arranged in flexible serial or parallel signal chains, giving users complete control over signal flow and tonal architecture. With 27 preset slots and 3 scenes per preset, players can instantly switch between complex performance setups, making it ideal for live shows, rehearsals, and studio sessions. A built-in 30-second stereo looper further expands creative possibilities, allowing loops to be placed pre- or post-effects for layered sound design. Connectivity is a key strength of the unit. Bluetooth control via the NBT-1 module allows wireless editing and preset management, while USB-C provides audio interface functionality, direct recording to computer, firmware updates, and deep software editing integration. This makes the pedal equally effective for both live rigs and modern DAW-based production workflows.
Housed in a durable aluminum chassis, the NMA-3AAP is built for reliability on the road. Its ultra-low latency (around 2ms) and high dynamic range ensure that every nuance of playing is preserved, from subtle fingerpicking to aggressive lead tones. Whether used in the studio, on stage, or as a complete silent practice rig, the NUX NMA-3AAP Amp Academy Stomp delivers professional-grade tone shaping and unmatched versatility — available now at Sadek Music.
SPECIFICATIONS
- Display: 2.86" color LCD (960×376)
- Presets: 27 factory + 27 user
- IR: 60 factory + 40 user slots
- Sample rate / Bit depth: 48kHz / 32-bit
- Dynamic range: 111dB
- Input impedance: 1MΩ
- Aux input impedance: 10kΩ
- Output impedance: 100Ω
- Send impedance: 1kΩ
- Headphone output impedance: 10Ω
- Latency: ~2ms
- Power: 9V DC (negative tip)
- Current draw: 500mA max
- Dimensions: 183 × 130 × 65.3 mm
- Weight: 0.9kg

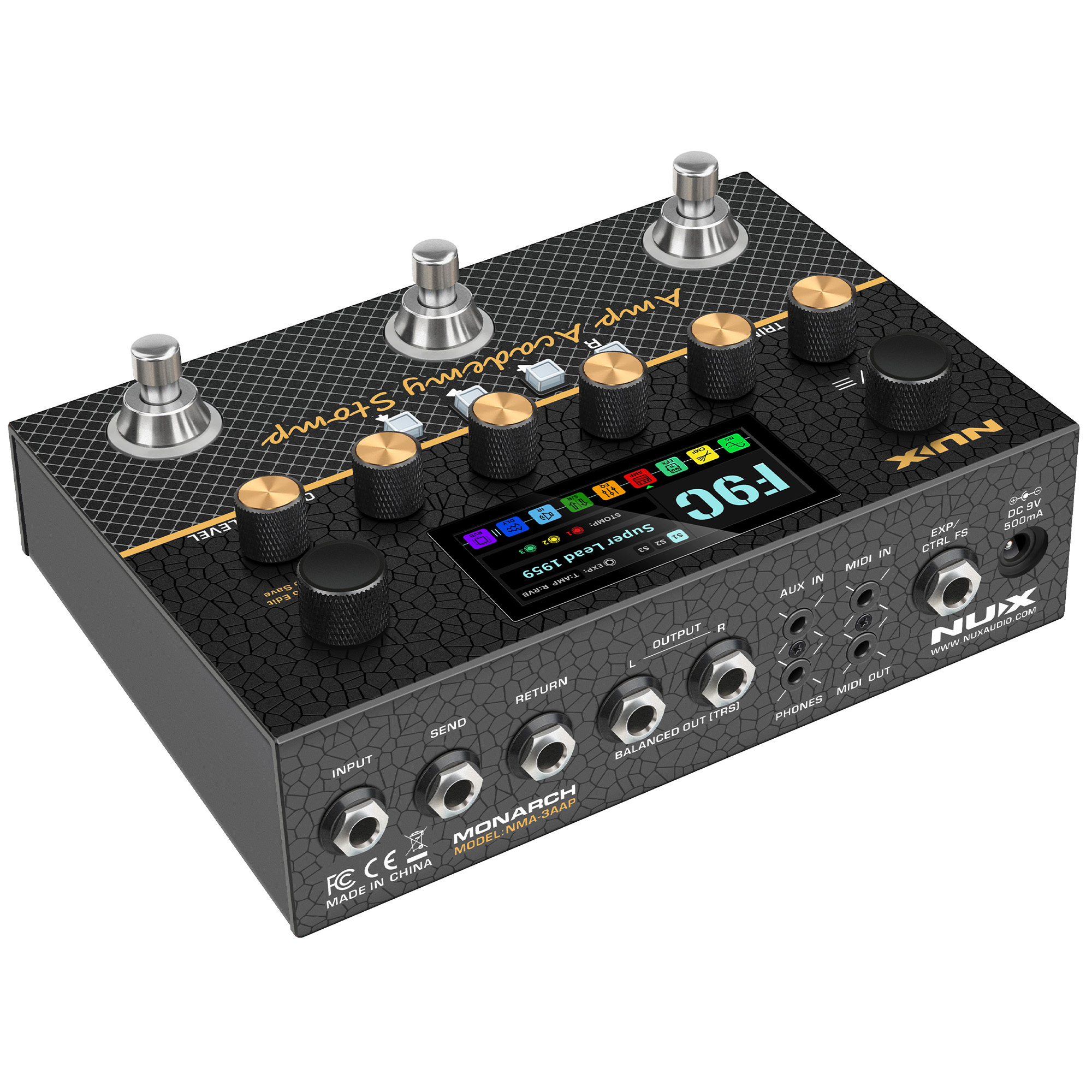

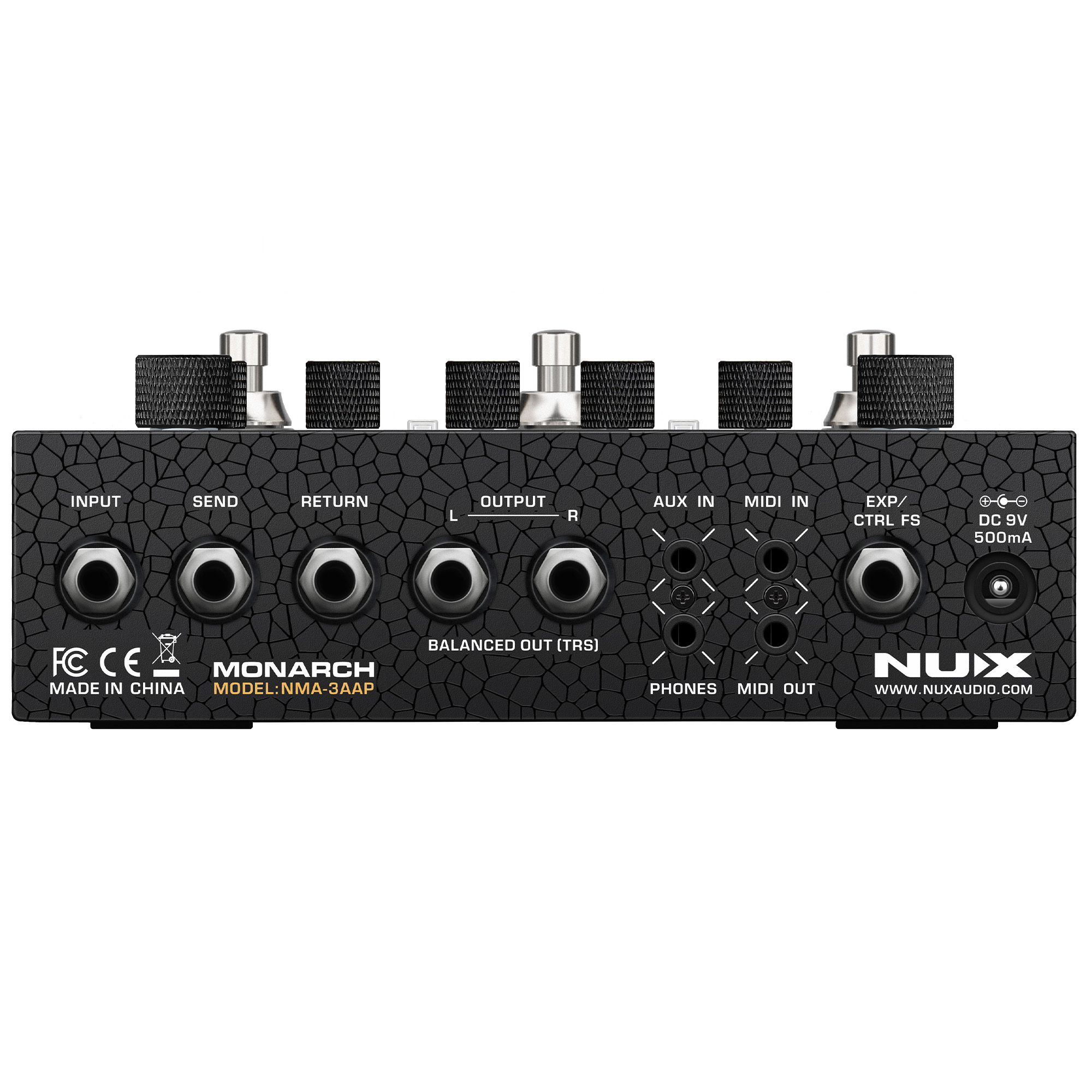

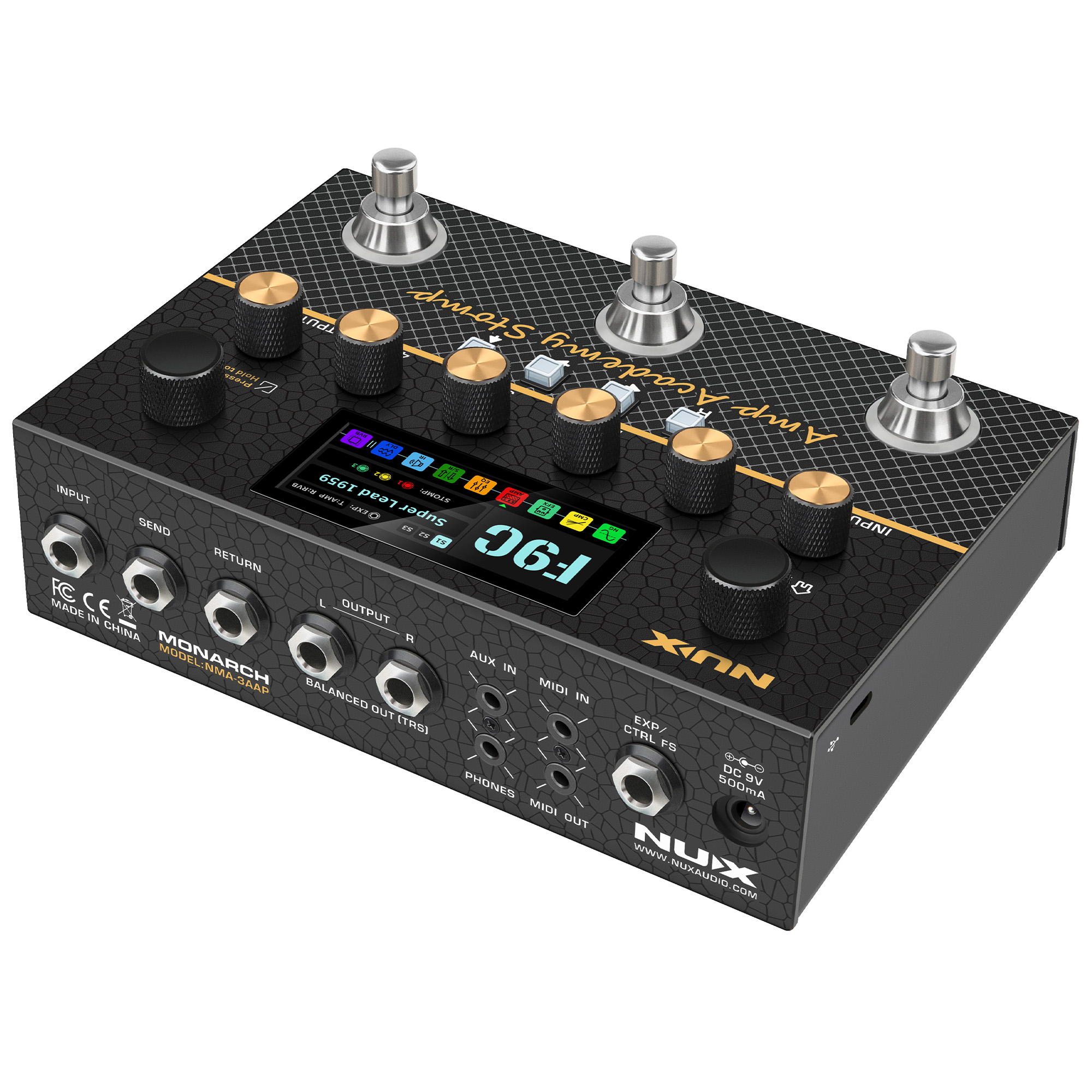

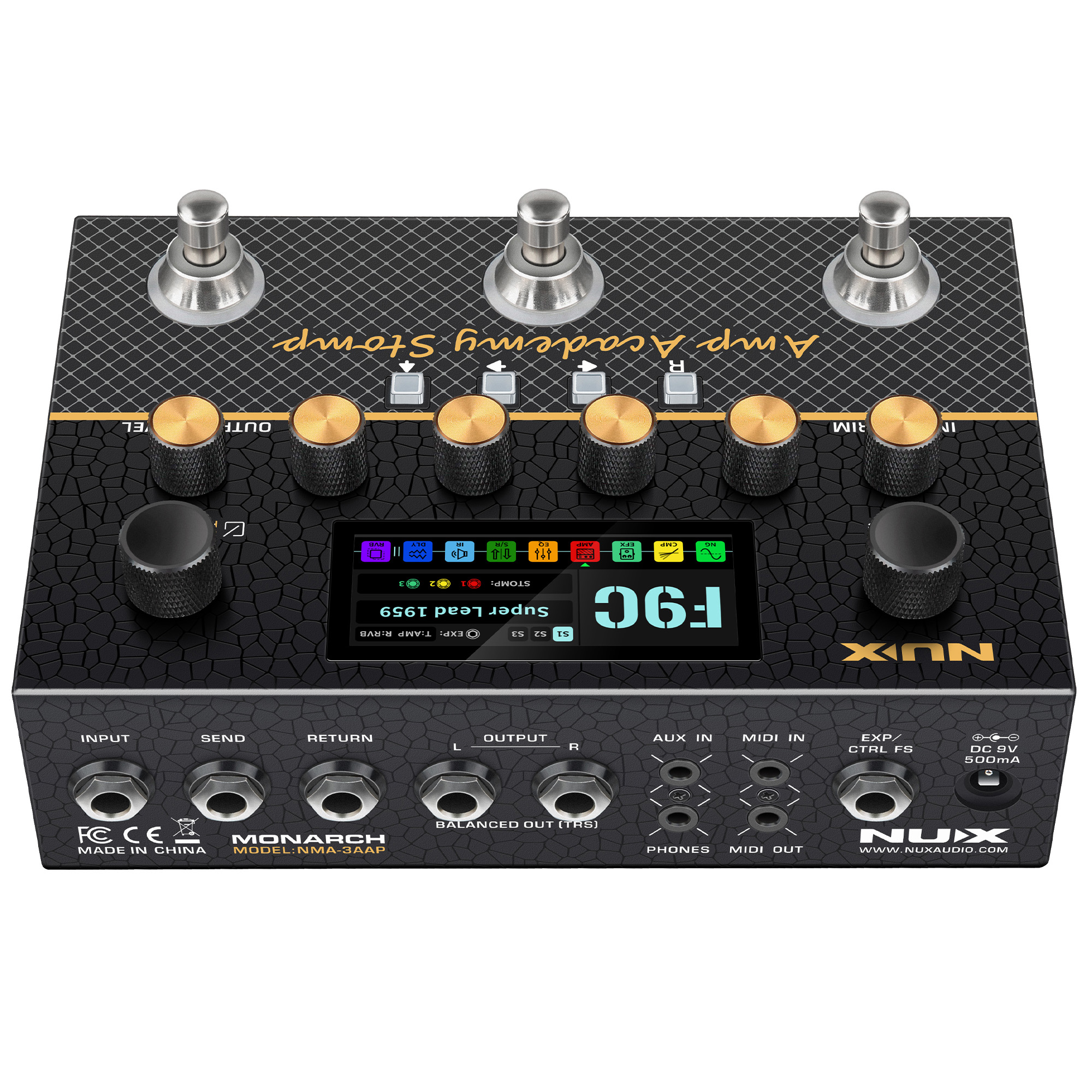

- Inputs: 1×1/4" guitar, 1×1/8" AUX
- Outputs: 2×1/4" balanced stereo out
- Send/Return loop
- Headphones out: 1×1/8"
- MIDI In/Out (mini 1/8")
- Expression/Footswitch jack (EXP/NMP-2 Lite)
- USB-C (audio, MIDI, editing, firmware)
- Bluetooth via NBT-1 module
